Caracteristici
Product colour	Black
Maximum resolution	4096 x 2160 pixels
Supported video modes	720p,1080p
LED indicators	Status
Maximum refresh rate	60 Hz
Supported graphics resolutions	1280 x 720 (HD 720),1920 x 1080 (HD 1080),1920 x 1200 (WUXGA),2560 x 1600 (WQXGA),3840 x 2160,4096 x 2160
Certification	FCC, CE, TAA
Audio output channels	7.1 channels
Maximum transfer distance	100 m

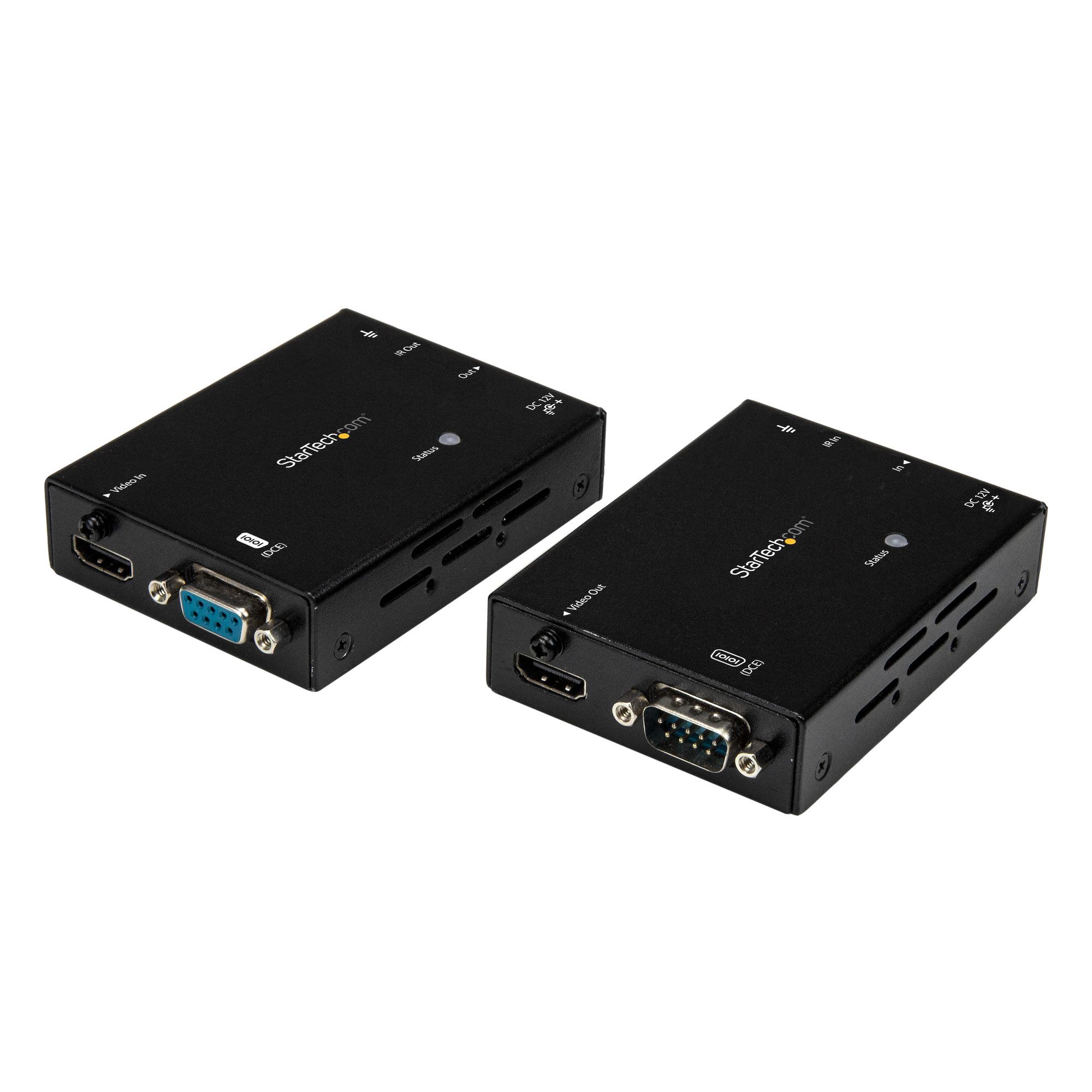

Type	AV transmitter & receiver
Cable types supported	Cat5e,Cat6
Daisy chain	No
Audio system	Multichannel
Rubber feet	Yes
HDBaseT certified	Yes

Conexiune

Number of HDMI outputs 1 HDMI in 1 RJ-45 input ports 1 RJ-45 output ports 1 Connectivity technology Wired Remote (IR) input 1 Remote (IR) output 1 Serial interface type RS-232 RS-232 input ports 1 RS-232 output ports 1

Managementul energiei

External power adapter Yes AC input voltage 100 - 240 V Power consumption (typical) 18 W Power plug type Type M Input current 0.6 A Output current 1.5 A Operating voltage 12 V

Greutate şi dimensiuni

Transmitter weight 452 g Receiver dimensions (WxDxH) 66 x 92 x 27 mm Transmitter dimensions (WxDxH) 66 x 92 x 27 mm Receiver weight 452 g

Datele de ambalare

Package width 194 mm Package depth 281 mm Package weight 1100 g Package height 70 mm

Conţinutul de ambalaje

AC adapter included Yes Cables included LAN (RJ-45) Mounting brackets included Yes Included power plug types ANZ,NA,UK IR receiver included Yes IR blaster included Yes

Detalii tehnice

Sustainability certificates RoHS

Date logistice

Products per master (outer) case 12 pc(s) Master (outer) case length 445 mm Master (outer) case height 320 mm Master (outer) case width 410 mm
