Managementul energiei
Power protection features	Over voltage,Short circuit
AC input frequency	47 - 63 Hz
AC input voltage	90 - 264 V
Total power	300 W
Power Factor Correction (PFC) type	Active
Max output current (+5V)	14 A
Max output current (+3.3V)	12 A
Max output current (-12V)	0.3 A
Max output current (+12V)	24 A
Combined power (+5Vsb)	3 W

Conexiune

Motherboard power connector 20-pin ATX Number of SATA power connectors 4 Peripheral (Molex) power connectors (4-pin) 2 ATX power connector (20+4 pin) Yes PCI Express power connectors (6-pin) 1

Performanță

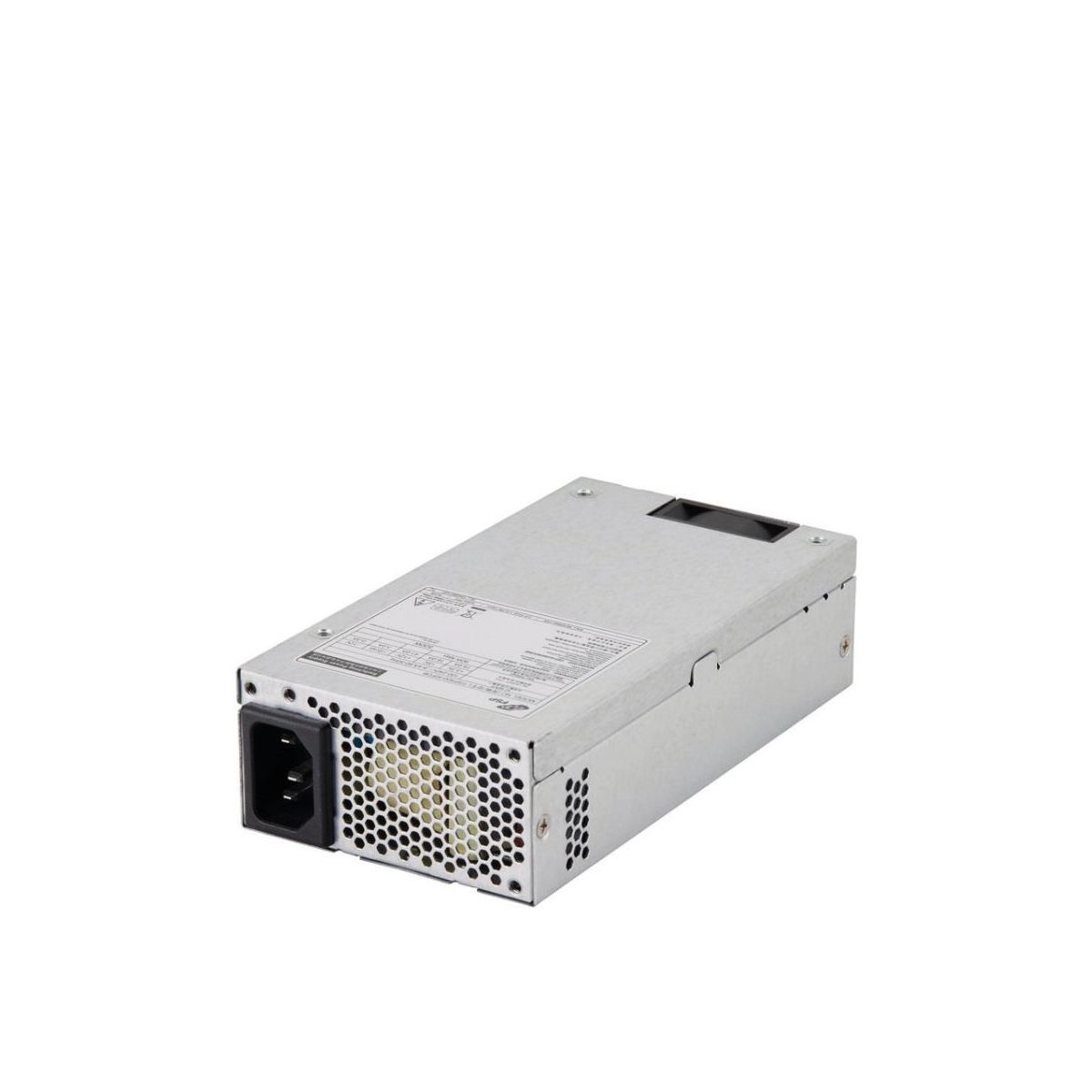

Mean time between failures (MTBF) 100000 h 80 PLUS certification 80 PLUS Bronze Purpose PC Compatible products Shuttle XPC SH610R4, SH510R4, SH570R6, SH570R6 Plus, SH570R8, SW580R8 Bearing technology Ball bearing

Design

Product colour Grey Fan diameter 40 mm Number of fans 1 fan(s) Cooling type Active Fan location Rear

Conditii de mediu

Operating temperature (T-T) 0 - 50 °C Operating relative humidity (H-H) 0 - 85 % Storage temperature (T-T) -20 - 80 °C Storage relative humidity (H-H) 0 - 90 %

Greutate ÅŸi dimensiuni

Depth 81.5 mm Width 150 mm Height 40.5 mm Weight 700 g

Datele de ambalare

Package weight 900 g

Detalii tehnice

Sustainability certificates CCC,CE,ENERGY STAR,Federal Communications Commission (FCC),TUV,UKCA,cUL Sustainability compliance Yes

Date logistice

Harmonized System (HS) code 85044083
